Eaton 2-Channel Narrow Band Wireless Receiver

762 2-Channel standalone Receiver

The 762 2-channel stand alone receiver enables you to see at a glance the status of up to two remote transmitters.Its LED display continuously shows your system

• Easy to learn in transmitters using via infra-red or by radio
• High performance Scantronic dual diversity radio system
• Auto-recognition of transmitter type and auto-configuration
• System status reporting via LED display or through relay outputs
• Anti-tamper polycarbonate housing
• Provision for the addition of an external antennae via a BNC socket
• 768rEUR-50 is expandable up to 32 channels using up to three 769rEUR-00
• 768rEUR-50 and 769rEUR-00 can accommodate an 8600 8 relay or an i-RC01 4 relay card

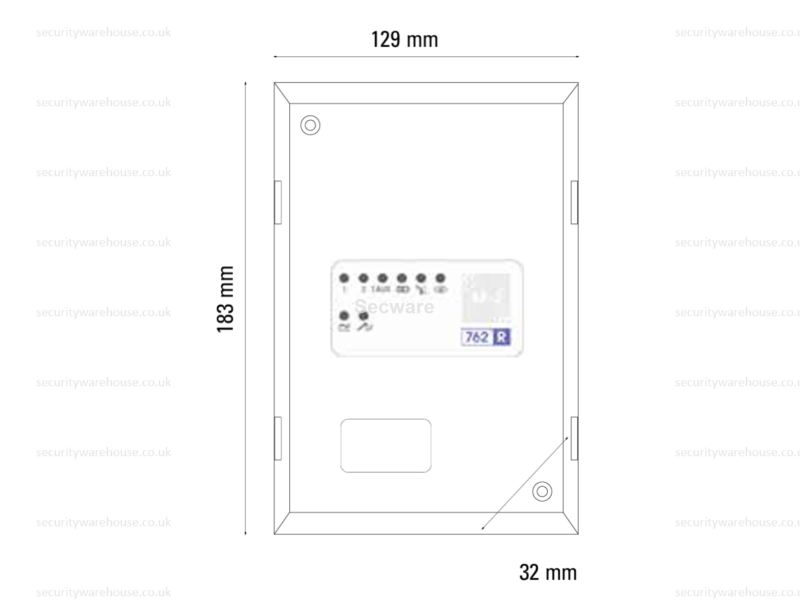

Dimensions (mm):

183 x 129 x 32


Variants

762rEUR-00 – Two channel radio receiver

768rEUR-50 – Eight channel radio receivers, expandable to 32 channels with the 769r

769rEUR-50 – Eight channel expander for use with the 768r

Eaton Was Scantronic
