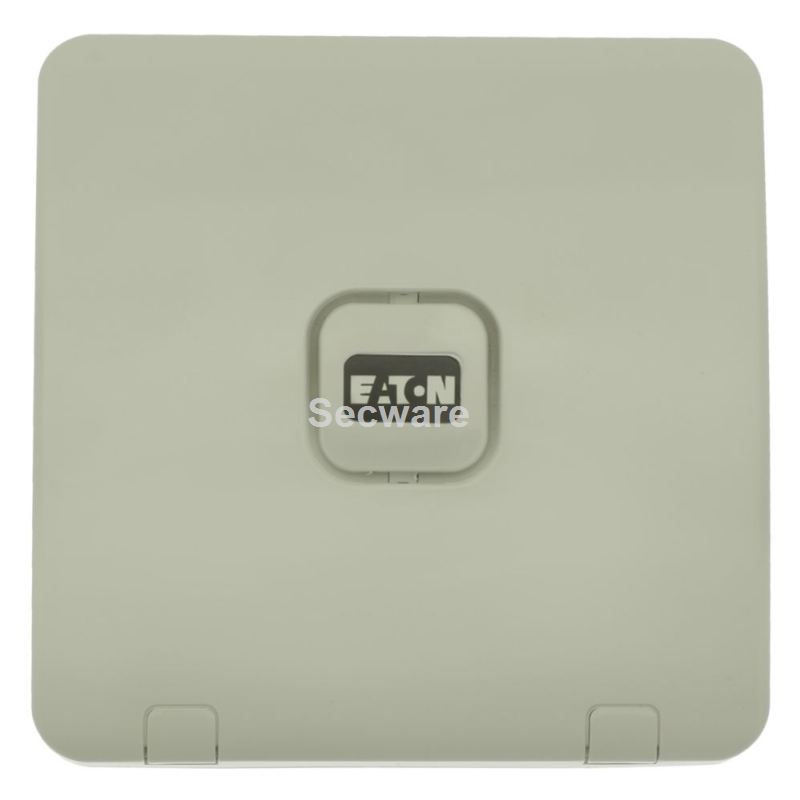

Fully compatible with Scantronic i-on range and new Menvier panels, Eaton’s SDR-RINT internal sounder enables tidier wire-free domestic installation.
The SDR-RINT internal sounder is ideal for those hard-to-reach areas out of earshot of keypads or panels - but where users need to hear system sounds.
Designed with a discreet housing, the unit blends in easily in entrance halls and other aesthetically sensitive areas. What’s more, it offers the option of connecting via either a radio expander or control unit with builtin radio capability.
Technical Specification
| BUILT-IN TRANSFORMER |
No |
| COMPLIANCE |
Independently certified to EN50131 & INCERT |
| CONNECTION |
Radio |
| CURRENT NORMAL |
0.03 mA |
| CUT-OFF PERIOD |
Auto-silences after 3 minutes if powered only by batteries |
| EN 50131 SECURITY GRADE |
2 |
| ENCLOSURE/LENS COLOR |
White |
| ENCLOSURE MATERIAL |
ABS (cover) Polycarbonate (lens) |
| ENVIRONMENTAL CLASS |
Not applicable |
| FREE SPACE RADIO RANGE |
500 m |
| LOW-VOLUME MODE |
Yes |
| OPERATING HUMIDITY - MAX |
95 % |
| OPERATING TEMPERATURE - MAX |
55 °C |
| OPERATING TEMPERATURE - MIN |
-10 °C |
| RADIO FREQUENCY |
868.6625MHz |
| REMOTE SELF TEST FUNCTION |
No |
| REPLACEMENT BATTERY CODE |
4 x AA Alkaline |
| SOUNDER OUTPUT |
80 dB |
| SOUNDER TYPE |
Internal |
| SUPPLY |
6 V |
| TYPE OF CURRENT |
DC |
| TYPE OF TONE |
Multi-tone |
| TYPICAL BATTERY LIFE |
12 monthly |
| DEGREE OF PROTECTION (NEMA) |
Other |
| DEGREE OF PROTECTION (IP) |
Other |
| ELECTRICITY CONSUMPTION |
0.03 A |
| HOUSING MATERIAL |
Plastic |
| MOUNTING METHOD (ETIM) |
Surface mount |
| TYPE OF TONE (ETIM) |
Other |
