Obsolete
Please see alternative; [SDR-REXT-G2-BL-NC] and [SDR-CV] for the cover
Description

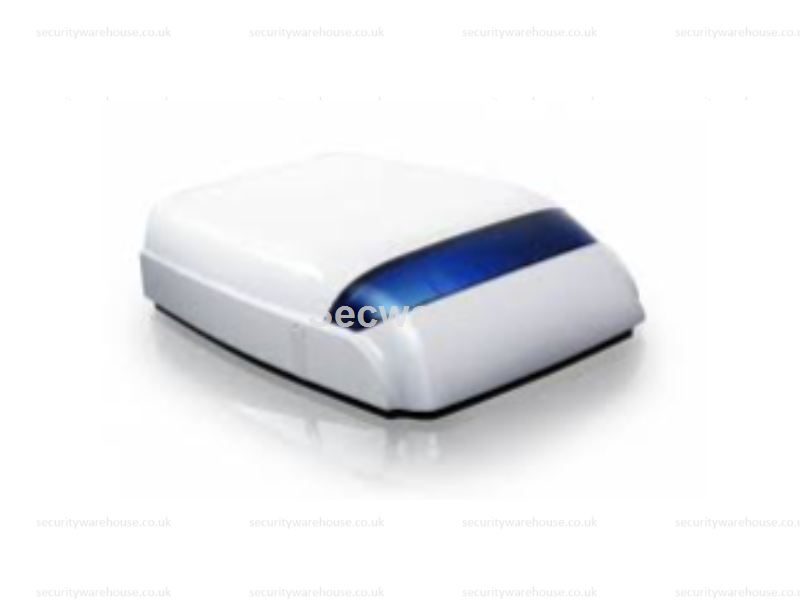

The 760ES is an external, self powered, siren and strobe unit designed to work with the I-ON range of control units.
Fitted within the enclosure are twin sounders capable of exceeding 100dB(A), a radio transceiver operating on 868MHz, a battery pack and a LED strobe strip. The unit can be mounted on any non-metallic vertical surface. The range of operation from the control unit may vary depending on the site conditions and in particular the material of walls between the two units. In free air the range will easily exceed 100m.
This product is suitable for use in systems designed to comply with EN 50131-1:2006 and PD6662:2004 +A1+A2 at Grade 2 and is tested to prEN 50131-4:2008 at Grade 2.
Features:
- 105 dB(A)@1m sound output
- prEN 50131-4 Grade 2 Compliant
- High power LED strobe
- Cover and rear tamper detection
- Selectable cut-off timer
- Anti-jamming detection
- Conformally coated electronics
- Battery change warning
- Built in spirit level installation aid
- Choice of battery options
- Quiet installation mode
- Cover screen printing facility
- ·High impact resistant polycarbonate backplate and cover
Specifications
| Sound Output |
105 dBA@1m (tone) |
| Cut-off Timer |
Selectable 5 secs, 3 mins, 15 mins |
| Environmental |
EN 50130-5:1999 class IV |
| Operating temperature |
-25°C to +60°C |
| Humidity |
93% RH |
| Dimensions |
212mm W, 346mm H, 76mm D |
| Weight |
1.2 kg (without batteries) |
| Case material |
Polycarbonate |
| Radio Supervision |
Programmable at control unit. |
| Radio Section |
Operating frequency 868.6625MHz Narrowband. |
| Transmitter range |
100m depending on the installation environment. |
| Battery Packs |
2 x 3V Alkaline |
| Battery Life |
Over two years for typical use* |
| Monitoring includes |
Battery low voltage (<4.0V), RF Jamming. |
*Battery life may be shorter if temperatures are regularly below 0°C.
