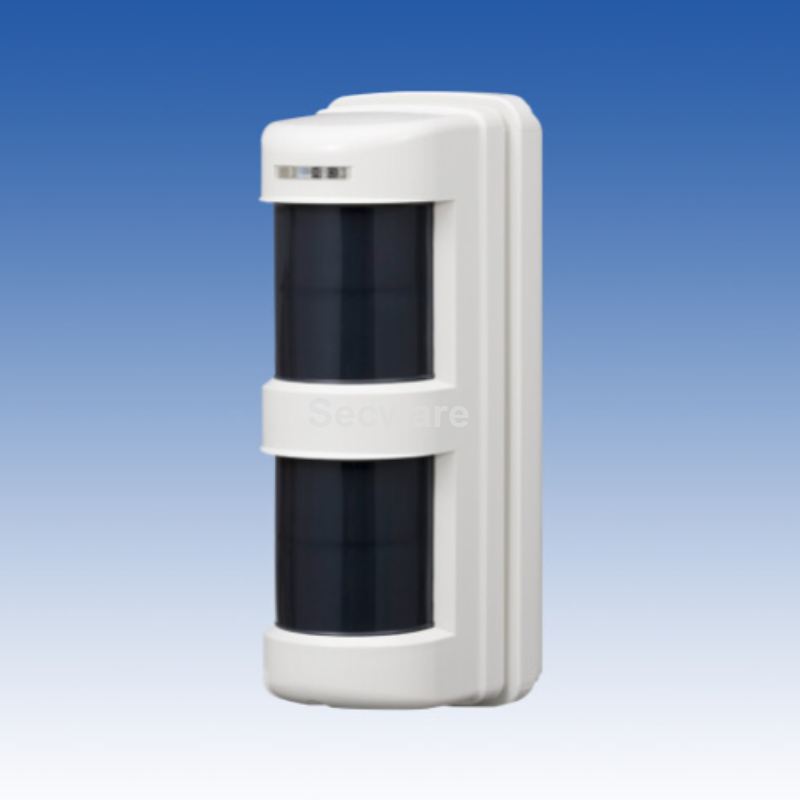

| Detection system |
Passive infrared
|

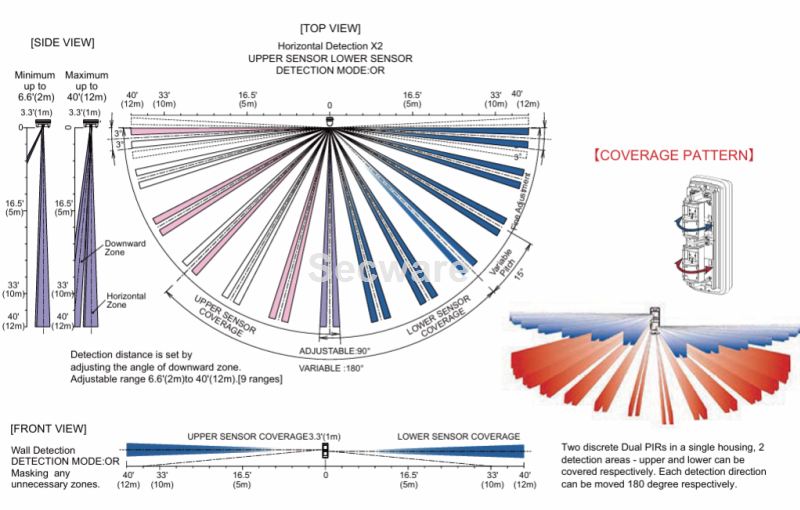

| Coverage |
Horizontal detection Angle: 90°
Detection distance: 40' (12m)
Horizontal zone: 7 zones
Downward zone: 7 zones
×2
|
| Mounting height |
0.8 - 1.2m
|
| Area adjustment |
Horizontal: 90 degrees Detection distance: 6.6' to 40' (2m to 12m)
(Adjustable by changing the vertical angle of downward curtain)
|
| Supply voltage |
3V to 9VDC Alkaline or Lithium Battery
(2.3V to 10VDC operation voltage)
|
| Current consumption |
35μA
5mA/3V (Test mode)
|
| Alarm output |
Solid State Switch N.C./N.O. selectable
10VDC · 0.01A Max
One shot output when detecting objects (approx. 2sec)
|
| Trouble output |
Real time output
· when the unit suffers functional trouble. (from terminal of Alarm)
|
| Tamper output |
Real time output
· when the cover is detatched from the unit
· when the unit is detatched from the installed wall or pole.
· when compartment is separated from back plate
|
| LED indicator |
Red LED:
• Blinking for approx. 1min during warm-up
• Lighting for 1sec at detection during walk-test (LED lights only in a test-mode)
• Blinking when trouble alarm is issued (Lights once every 5 sec)
|
| Pulse count |
Once/Three times selectable (by dip switch)
|
| Sensitivity adjustment |
Approx. 30% to 170% (by rotary switch)
|
| Alarm prohibition time |
10sec/120sec/300sec/900sec selectable (by dip switches)
|
| Detection mode |
AND/OR selectable
|
| Mounting position |
Indoor/Outdoor [Wall or Pole]
|
| Wiring |
Terminals
|
| Weight |
20oz (620g)
|
| Appearance |
Body: AES resin
Lens: PE resin
|
| Accessory |
Mounting screw: 2pcs
Adhesive sheet: 1pc
Area masking sheet: 2pcs
Back tamper disable collar: 1pc
Battery holder: 1pc
|
